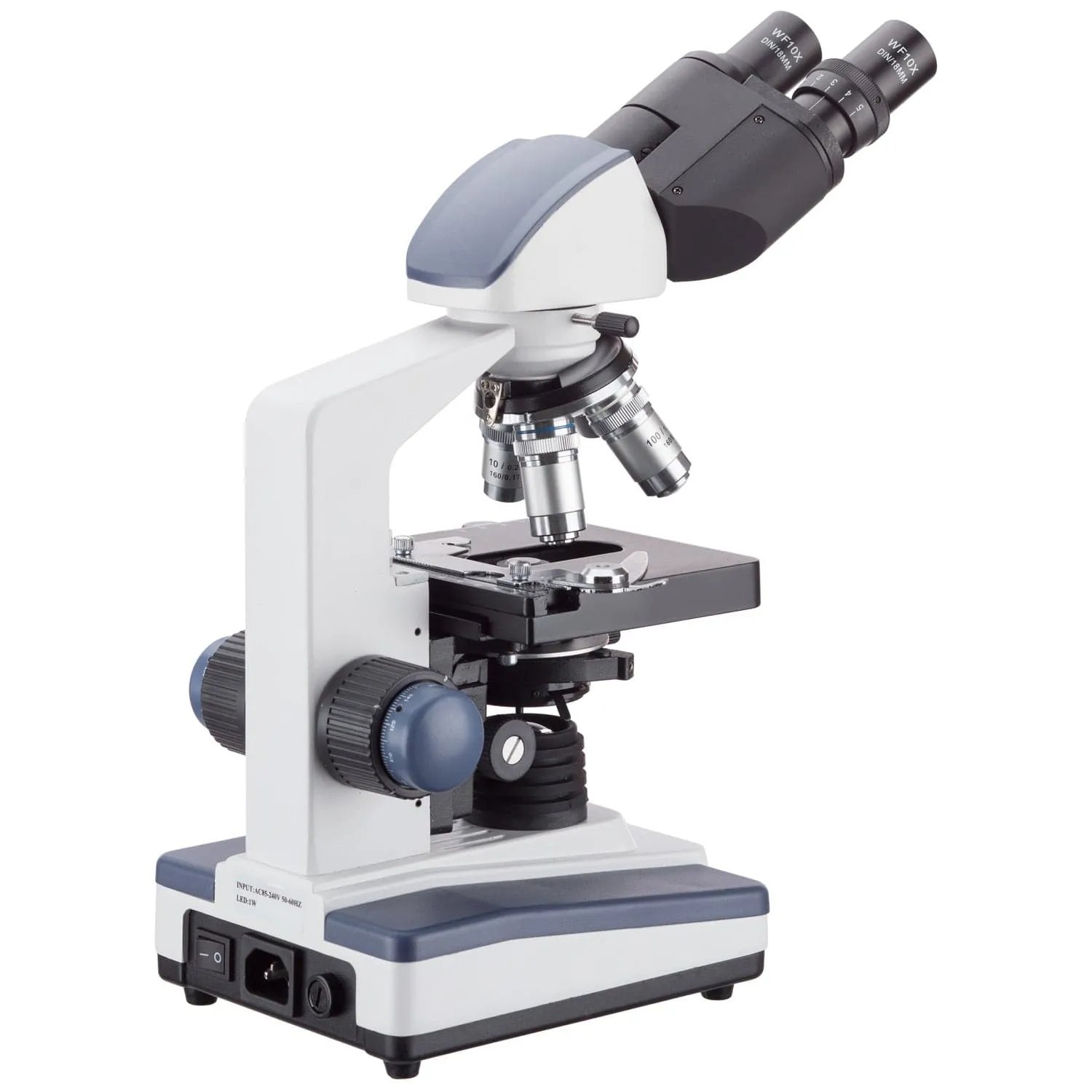

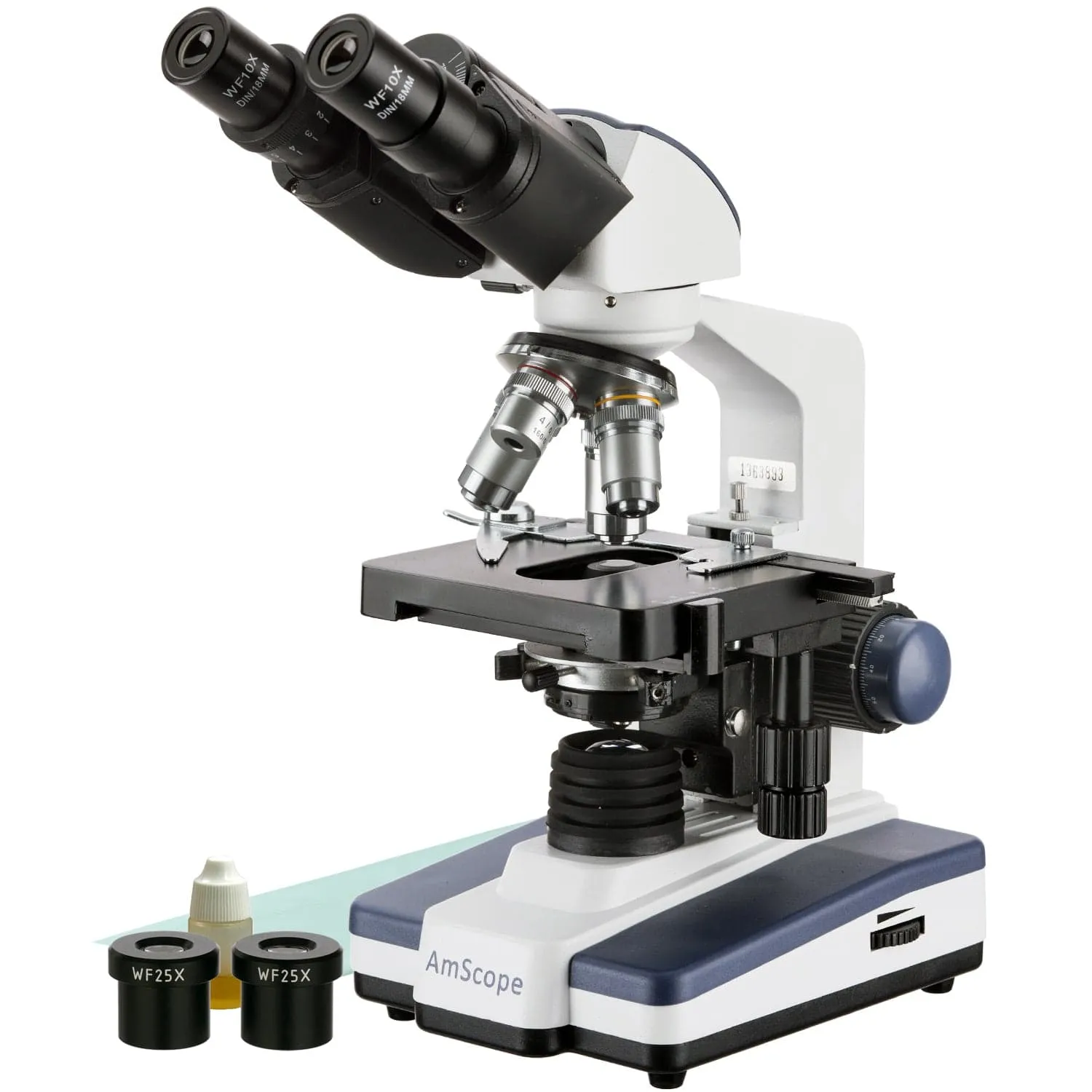

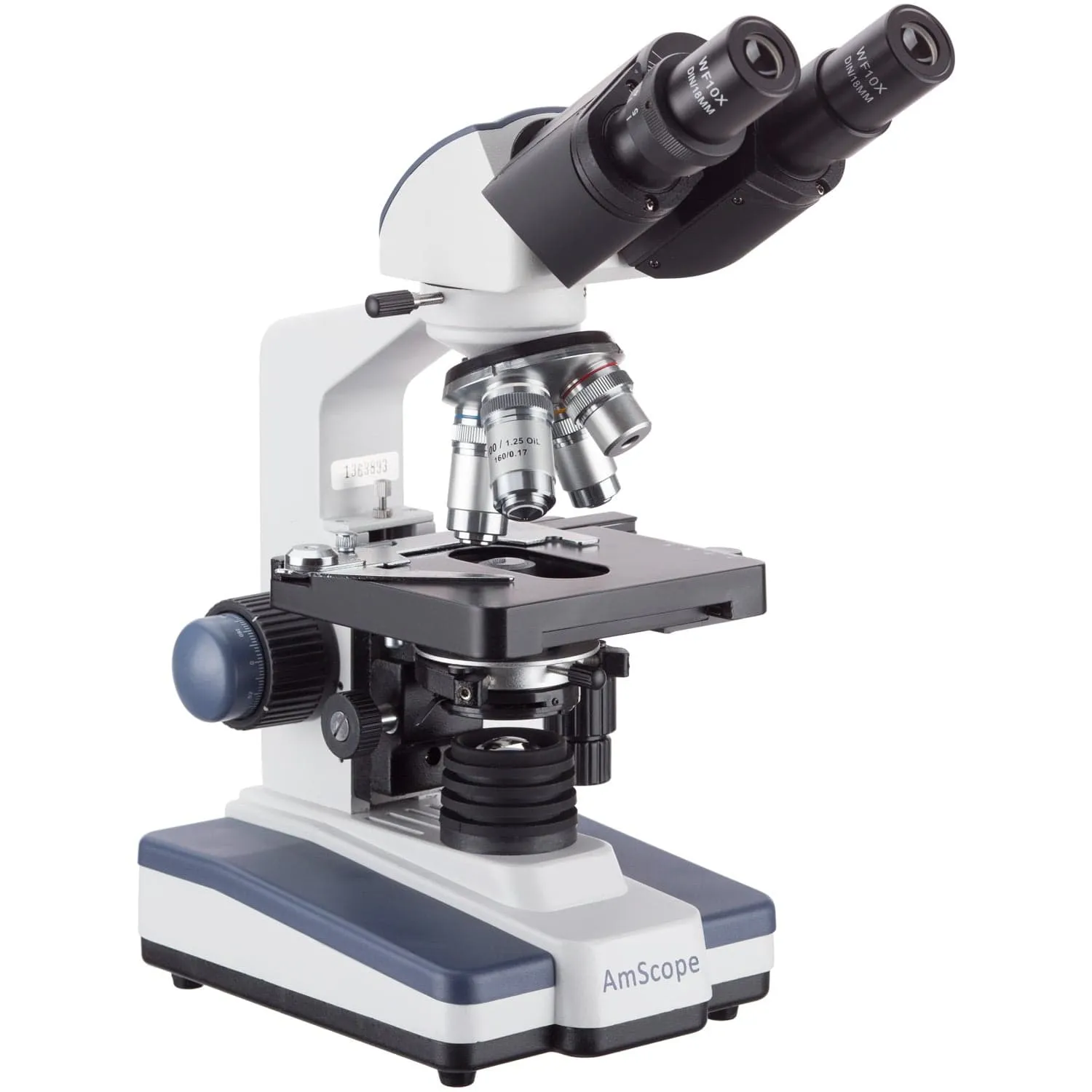

Our new binocular compound microscope is designed for teaching demonstrations, clinical examinations and laboratory applications. It is a perfect microscope for teachers and students including those in medical school or with a major in biology. It comes with a Siedentopf binocular head, double layer mechanical stage with coarse & fine focusing, an LED illumination system, and a pack of 50 blank slides with 100 coverslips. There are six magnification settings: 40X, 100X, 250X, 400X, 1000X & 2500X. This microscope is an ideal instrument for bacterial, biological, and pharmaceutical researches.

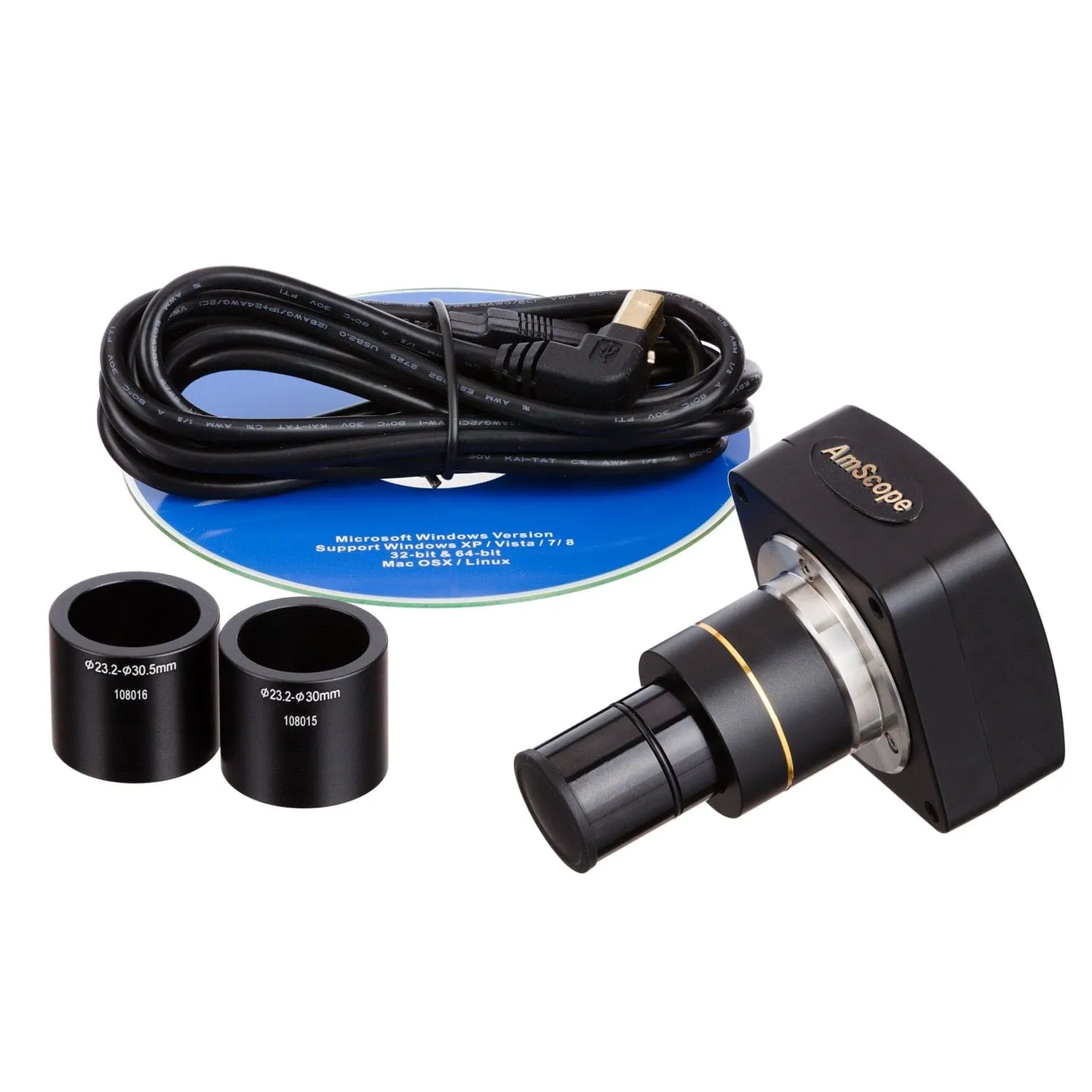

The 5MP USB2.0 digital camera captures still images and video, and allows you to view a live stream on your PC. With software available for Windows, Mac, and Linux, it's a multi-platform imaging solution. The included Windows software offers image-development and measurement tools, as well as advanced compositing features such as image-stitching and extended-depth-of-focus. Independent preview and capture resolutions allow you to view high-speed video while capturing high-definition images. For Mac and Linux, there is a lite version with limited processing features.
Features :

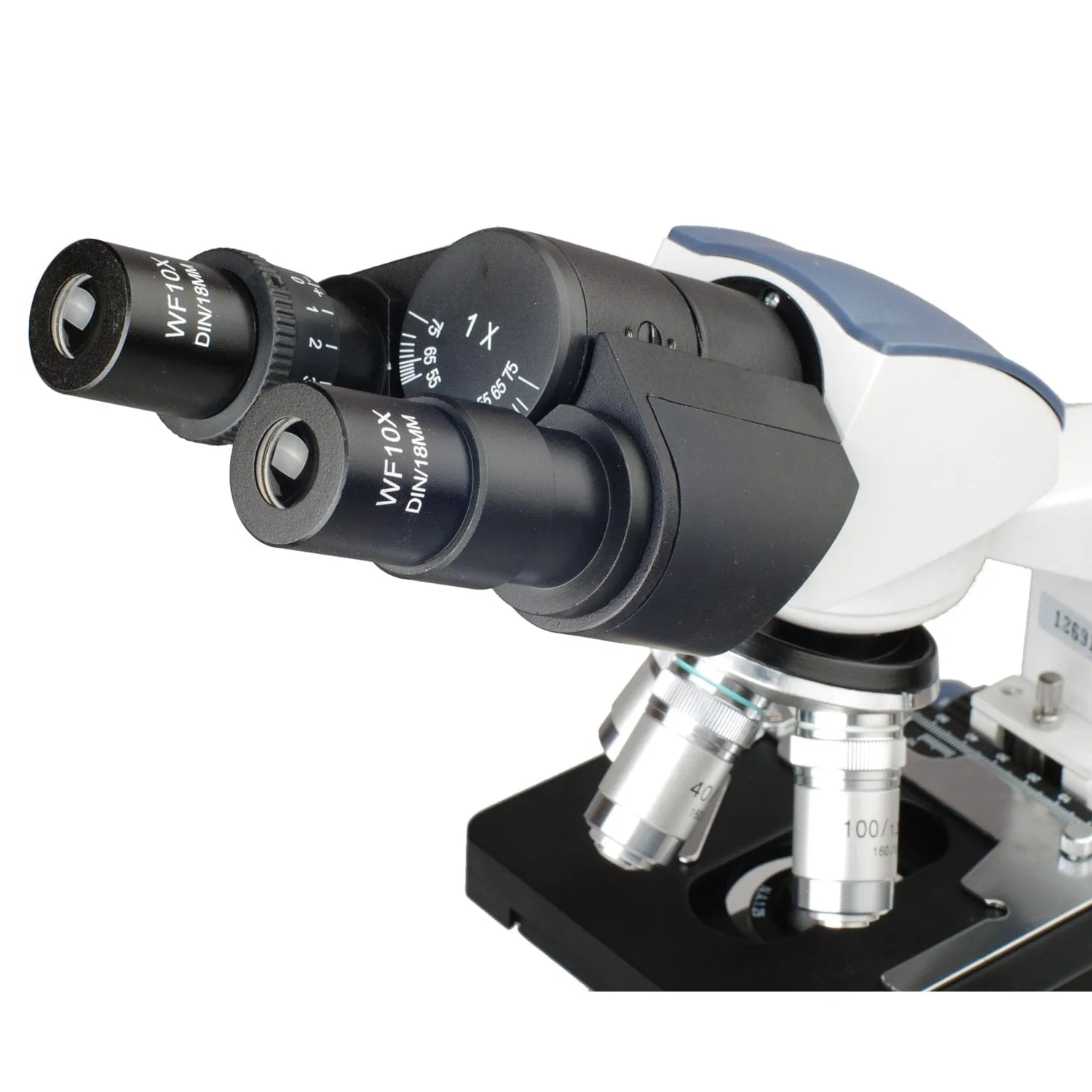

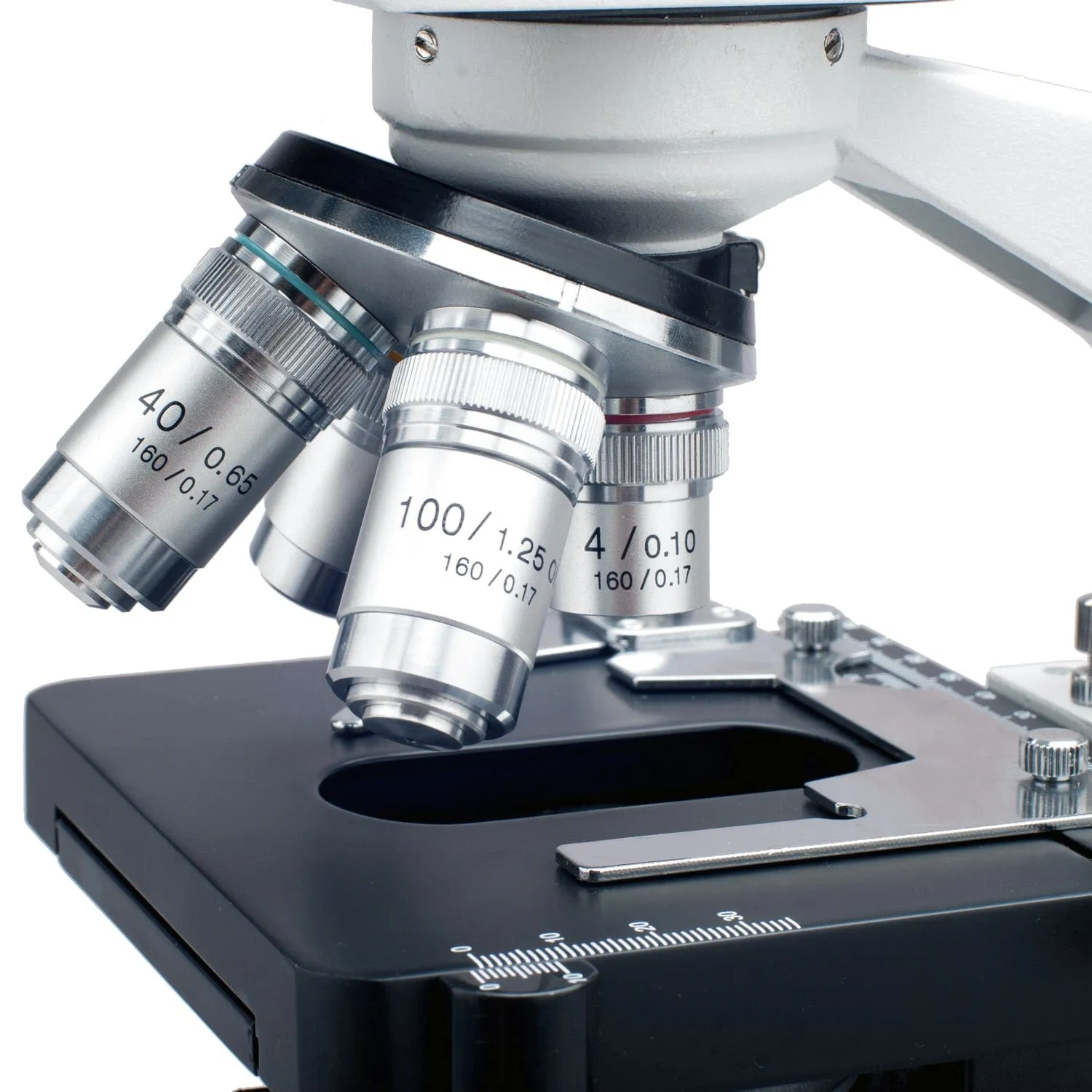

30 degree inclined 360 degree swiveling Siedentopf binocular headHigh quality precise optical glass elementsEasy to attach a microscope camera or digital imagerSix magnification settings, 40X, 100X, 250X, 400X, 1000X & 2500XFour Achromatic objectives, DIN 4X, 10X, 40X(S), 100X(S,Oil)Two pairs of widefield eyepieces: WF10X and WF25XAdjustable interpupillary distanceAdjustable ocular diopterVariable intensity illuminationCoaxial coarse and fine focus adjustmentFocusing knobs are on both sidesStage upward moving lock protects objectives and slidesStain-resistant double layer mechanical stageNA1.25 Abbe Condenser with iris diaphragm & filtersRack and pinion adjustment condenserSpecifications :
Eyepieces: widefield, WF10X and WF25XObjectives: Achromatic DIN 4X, 10X, 40X(S), 100X(S, Oil)Head: 30 degree inclined 360 degree swiveling binocularInterpupillary distance: 2-1/8" - 3-1/8" (53mm - 77mm)Adjustable ocular diopterNosepiece: revolving quadrupleMechanical Stage: 3-D double layer- Size: 4-5/8" x 5" (118mm x 127mm)- Travel Range (X-Y): 70mm x 21mmCondenser: NA1.25 Abbe condenser with iris diaphragmIllumination: LED light, transmitted, intensity adjustable, GS and CE approvedFocusing: coaxial coarse & fine knobs on both sidesPower Supply: 100-240VAC, 50/60Hz, AC/DC adapter (UL approved) IncludedDimension: 11" x 7" x 13-3/4" (280mm x 178mm x 350mm)Camera Specifications:
Sensor: Aptina MT9P001 Sensor Type: CMOS Sensor Size: 5.7x4.28mm Pixel Size: 2.2 Resolution: 5.1MP Frame Rate: 5@2592x1944, 18@1280x960, 60@640x480 Sensitivity: 0.53 V/lux-sec Compatibility: Windows (32/64 bit) XP/Vista/7/8/10, Mac OSX, Linux
Software Specifications:
OS Requirements: Windows (32/64 bit) XP/Vista/7/8/10, Mac OS 10.8 , Linux kernel 3.13 Hardware Requirements: Intel Core2 2.8GHz or comparable processor, 2GB RAM, USB2.0 portPacking List :

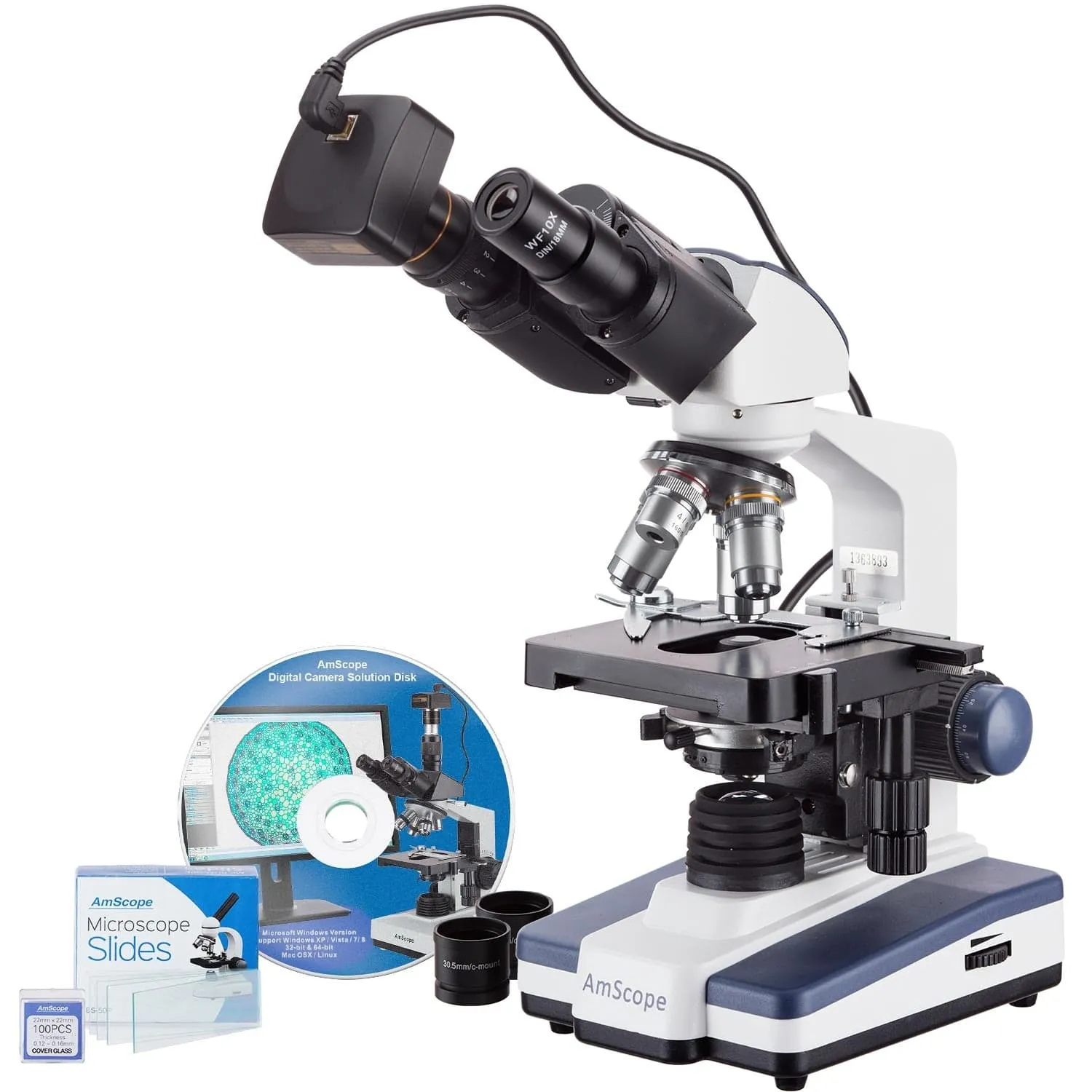

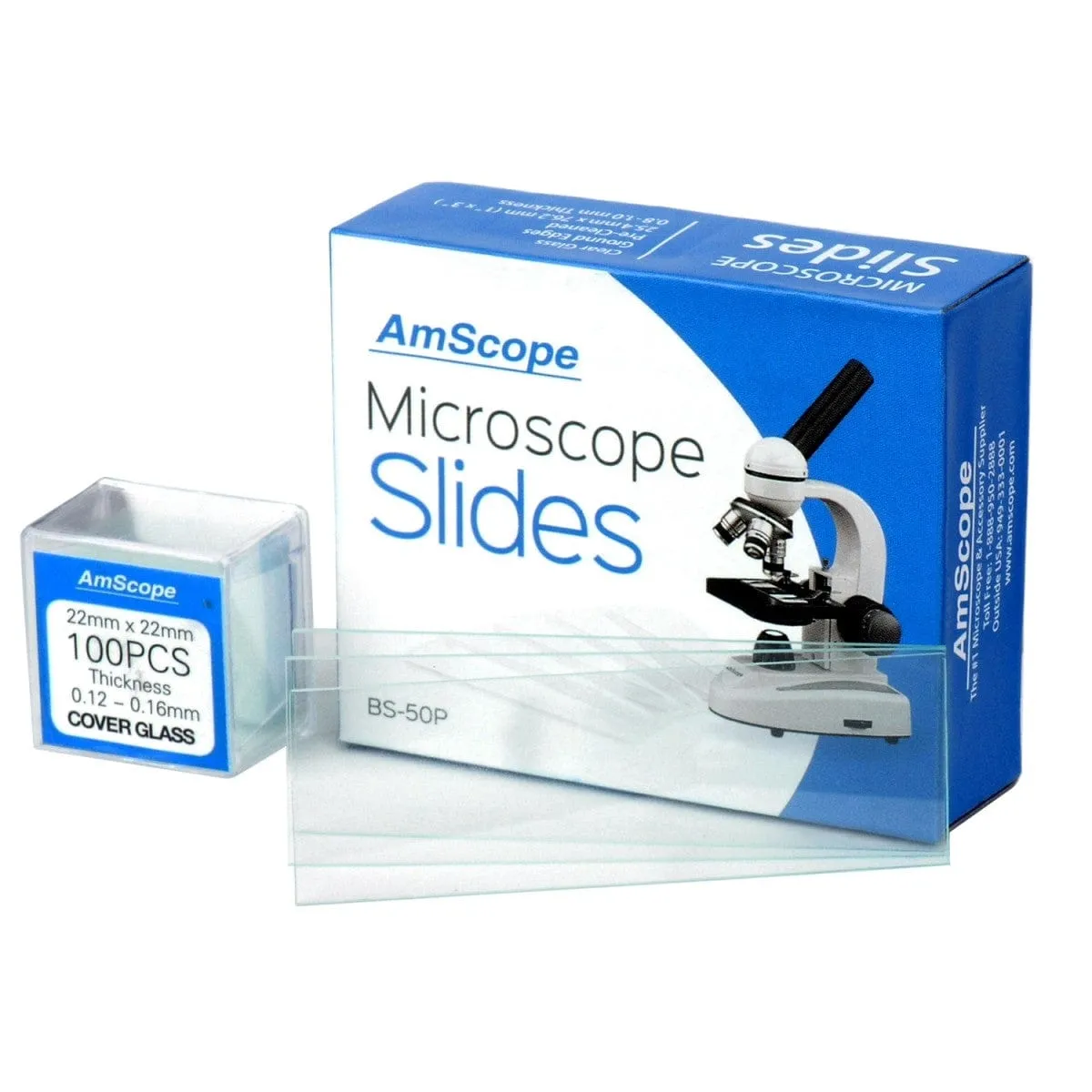

One Siedentopf Binocular Microscope HeadOne Microscope Body Frame with Double Layer Mechanical Stage and LED IlluminationFour DIN Standard Objectives, 4X, 10X, 40X and 100XOne Pair of Widefield 10X EyepiecesOne Pair of Widefield 25X EyepiecesOne Blue Color FilterOne Dust Cover 50PC Blank Standard Microscope Slides 100PC CoverslipsSample Immersion Oil One 5MP USB2.0 Digital Camera with a reduction lense Two sizing adapters (23-30mm, 23-30.5mm) One USB cableUser's ManualNet weight: 10 lbsShipping weight: 12 lbs
