This is a super widefield multi-power binocular stereo microscope head with 10X, 20X, 30X and 60X magnification settings. It includes a 2.0X Barlow Lens and a pair of super widefield high-eyepoint WH10X/20 eyepieces coming with 45° inclined 30mm eyetubes with diopter. Its super widefield optics and high-eyepoint design ensure an easy and comfortable observation. The microscope offers high resolution clear images, super widefield of view and large working distance. It fits all the focusing racks with a 3" (76mm in diameter) O-ring holder.
Features:
- 10X and 30X Magnification Settings
- 45° Inclined Binocular Head with 30mm Super Widefield WH10X/20 Eyepieces
- High Resolution with Great Flatness and Contrast
- Sharp Stereo Erect Images over a Wide Field View
- High Quality Clear Original True Color Images
- Ocular-Tube with Adjustable Diopter
- Large Working Distance
- Accurate Alignment Ensuring a Fatigue-Free Viewing
- Full Optical Glass Elements
- Precise Ground Glass Lens
- All Metal Mechanical Components
- Adjustable Interpupillary Distance
- Foldable Rubber Eyeguards Included
- Manufactured under ISO 9001 Quality Control Standard
- Excellent Five (5) Year Manufacturer Warranty
Specifications:
- Head: 45° inclined 360° swiveling binocular
- Eyepiece: WH10X/20 super widefield 30mm high-eyepoint
- Barlow Lens: 2.0X
- Objective: 1X and 3X
- Diopter Adjustment: ±5dp
- Interpupillary Distance: 1-7/8" - 2-15/16"(47-75mm)
- Field of View: 0.787" (20mm) @ 10X
- Working Distance: 4" (100mm)
- Head Mounting Size: 3" (76mm) in diameter
- Accessory Mounting Size: 1-7/8" (48mm female thread) in diameter

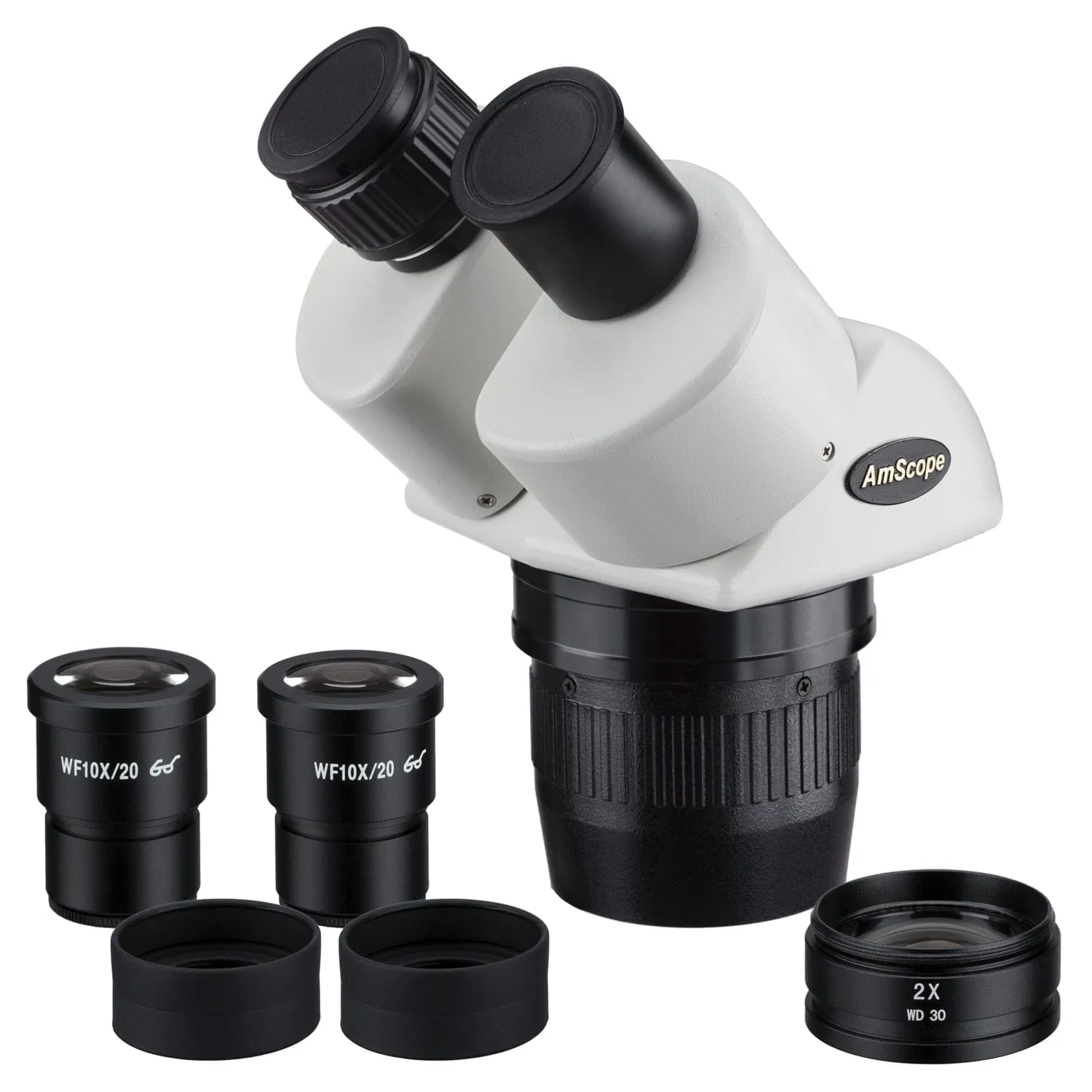

Packing List:
- One 10X and 30X Binocular Stereo Zoom Head
- One Pair of Super Widefield WH10X/20 Eyepieces
- One 2.0X Super Widefield Barlow Lens
- One Pair of Foldable Rubber Eye-Guards
- User's Manual Download
- Shipping Weight: 10 lbs
